Electricity Grinder Crusher Machine Diesel Engine Hammer Mill Grinder For Corn

Electricity Grinder Crusher Machine Diesel Engine Hammer Mill Grinder For Corn

Electricity Grinder Crusher Machine 2000kg/h

Grinder Crusher Machine Diesel Engine

Electricity Hammer Mill Grinder For Corn

起源の場所:

中国

ブランド名:

Zhongdebao

証明:

CE BV

モデル番号:

EWPシリーズ

私達に連絡しなさい
引用を要求しなさい
プロダクト細部
主セリング・ポイント:
高い生産性
販売のタイプ:
熱いプロダクト2023年
中心の部品の保証:
2年
条件:
新しい
製品名:
家禽の供給のハンマー・ミル
適用:
畜産場
容量:
150---2000kg/h
最終製品:
1-10mmのおがくず
のために適しなさい:
Cow.sheepの家禽
予備品:
ハンマー、網目スクリーン
利点:
容易な操作
原料:
トウモロコシの大豆/スパイス/トウモロコシ/穀物の唐辛子/コショウのパプリカ
名前:
トウモロコシ ディスク機械を押しつぶす製造所/穀物
タイプ:
穀物/トウモロコシ/トウモロコシ/穀物のハンマー・ミル
支払及び船積みの言葉
最小注文数量
1セット
価格
price negotiable
パッケージの詳細
木の場合のパッケージを使ってまたは容器で直接荷を積まれて
受渡し時間
5-8仕事日
支払条件
L/C、D/A、D/P、T/T、ウェスタン・ユニオン
供給の能力
1ヶ月あたりの999セット
製品の説明



Fodder Hammer Mill is the most ideal milling equipment of all kinds of wood pieces, straw, grass, stalk, tree branches, waste cardboard, bamboo, wood scrap, corn stalk, peanut shell, wheat stalk, wood fuel, cotton stalk, biomass shell,corn ,wheat and other grains etc.



This machine can cut and crush various crop straw, as well as feed grass such as corn straw, cotton straw, bean and orange, rice husk, peanut husk, sweet potato seedlings, grain straw, wheat straw, and various types of granular grains and miscellaneous grains. The machine has the characteristics of cutting grass and crushing as one, making it an ideal equipment for large, medium, and small farms and households to feed poultry such as chickens, ducks, pigs, cows, and sheep. This machine has low power, high output, simple structure, convenient operation, and can be operated by one person. The processing range is wide, and the raw materials are not limited in length.

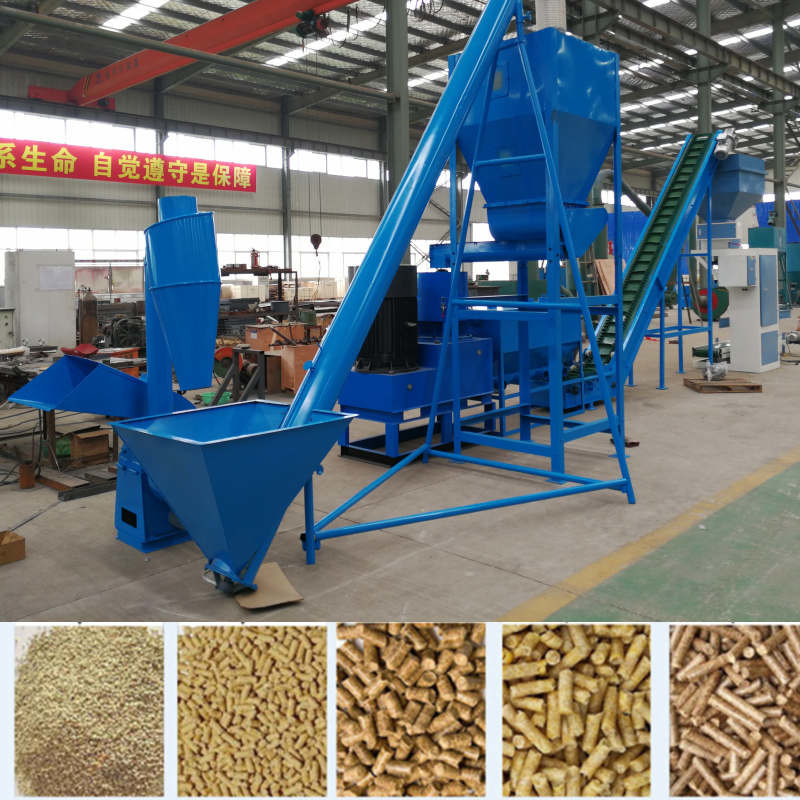

Electricity Grinder Crusher Machine Diesel Engine Hammer Mill Grinder For Corn 0

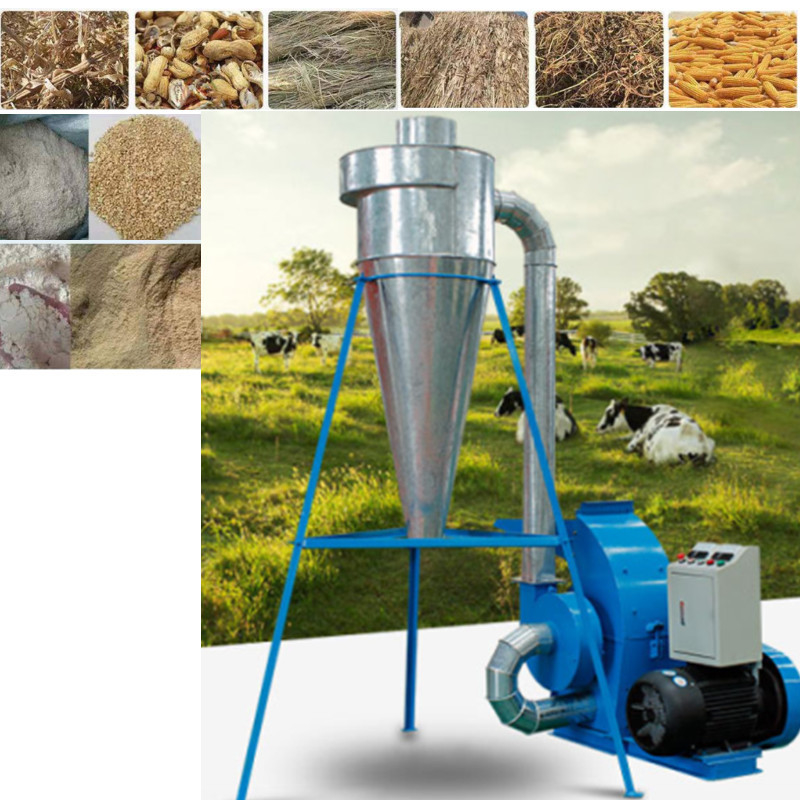

Electricity Grinder Crusher Machine Diesel Engine Hammer Mill Grinder For Corn 1

working principle :



The machine uses a high-speed hammer to strike and crush the material entering the crushing chamber. Under the action of centrifugal force, the crushed powder particles are sent out of the machine through the sieve hole under the centrifugal pressure of the rotor and the suction force of the fan. The powder particles that do not pass the sieve hole repeat the above process until they can be sent out of the machine through the sieve hole.



Model
Motor power
capacity (kg/h)
Weight (kg)
Packing size(mm)
EWP158B
1.5kw
60-120kg/h
75/85kg
750*450*730mm
EWP198B
3kw
120-250kg/h
120/135kg
1000*750*1120mm
EWP420B-7.5
7.5kw
250-500kg/h
250/270kg
1200*1000*1220mm
EWP420B-11
11kw
250-700kg/h
300/320kg
1200*1000*1220mm
EWP500B-28B
11kw
400-800kg/h
470/500kg
1500*650*560mm
EWP500B-28B
15kw
400-1000kg/h
500/530kg
1100*930*980mm
EWP500B-40B
22kw
800-1000kg/h
710/755kg
1900*1100*1270mm
EWP500B-40B
30kw
800-1300kg/h
805/850kg
1900*1100*1270mm
EWP500B-60B
37kw
1000-1600kg/h
906/960kg
1900*1240*1270mm
EWP500B-60B
45kw
1000-2000kg/h
940/995kg
1900*1240*1270mm
Model
Matched Power
Capacity
Weight
Package size
EWF420-280A
15HP
250-500kg/h
370/390kg
1650*800*1120mm
EWF420-280A
22HP
250-700kg/h
390/410kg
1650*800*1120mm
EWF500-280A
22HP
400-1000kg/h
480/510kg
1700*800*980mm
EWF500-400A
55HP
800-1100kg/h
cyclone dust collector 125/145kg
Main machine310/330kg
Diesel engine560/590kg
2700*750*920mm
1150*800*1270mm
1500*1050*1320mm



wear parts :



Electricity Grinder Crusher Machine Diesel Engine Hammer Mill Grinder For Corn 2
