300kg-800kg Wood Pellet Production Line Bagasse Sorghum Straw Pellet Production Line

300kg-800kg Wood Pellet Production Line Bagasse Sorghum Straw Pellet Production Line

800kg Wood Pellet Production Line

Wood Pellet Production Line Bagasse

Sorghum Straw Pellet Production Line

起源の場所:

中国

ブランド名:

Zhongdebao & Eternalwin

証明:

CE

モデル番号:

420R-500kg

私達に連絡しなさい
引用を要求しなさい
プロダクト細部
製品名:
生物量/木製の餌の生産ライン
機能:
暖房用燃料のための木製の生物量の餌を作るため
型のタイプ:
きっかり利用できる死ぬために死になさい及び鳴らしなさいタイプ
色:
カスタマイズすることができる
電圧:
220v、380v、480vはまたはカスタマイズすることができる
容量:
300kg/hour 500kg/hour 1-10のトン/時間
餌の直径:
6mm、8mm、10mm、12mm
支払及び船積みの言葉
最小注文数量
1セット
価格
negotiable
パッケージの詳細
20GP、40HQまたは標準的な木の場合の包装
受渡し時間
15-25の仕事日
支払条件
T/T、ウェスタン・ユニオン、L/C、MoneyGram
供給の能力
1ヶ月あたりの60セット
関連製品
私達に連絡しなさい
86-371-86546711
今接触
製品の説明

300kg To 800kg Wood Pellet Production Line For Rice Husk, Bagasse, Sorghum Straw



Production Description:



  Zhongdebao Industry is a professional manufacturer of customized biomass wood pellet machine line solutions. This 300kg To 800kg Wood Pellet Production Line For Rice Husk, Bagasse, Sorghum Straw was made by Zhongdebao for customers with lower investment.



  Notice: Not only the small wood pellet line, w can provide you a Complete Biomass Wood Pellet Production Line with customized capacity and raw materials, from 1T/H to 100T/H. The size of pellets can be 6/8/10/12 or others customized size.



  Zhongdebao Industry can provide complete customized wood pellet engineering solutions. Including design planning, raw material processing equipment, pellet manufacturing equipment, automatic packaging equipment, automatic control system, workshop, steel frame, etc.

Zhongdebao Industry is customized according to the customer's site, raw material types, pellet requirements, and we can automate the control of the entire production line, making the operation easier and reducing labor costs.

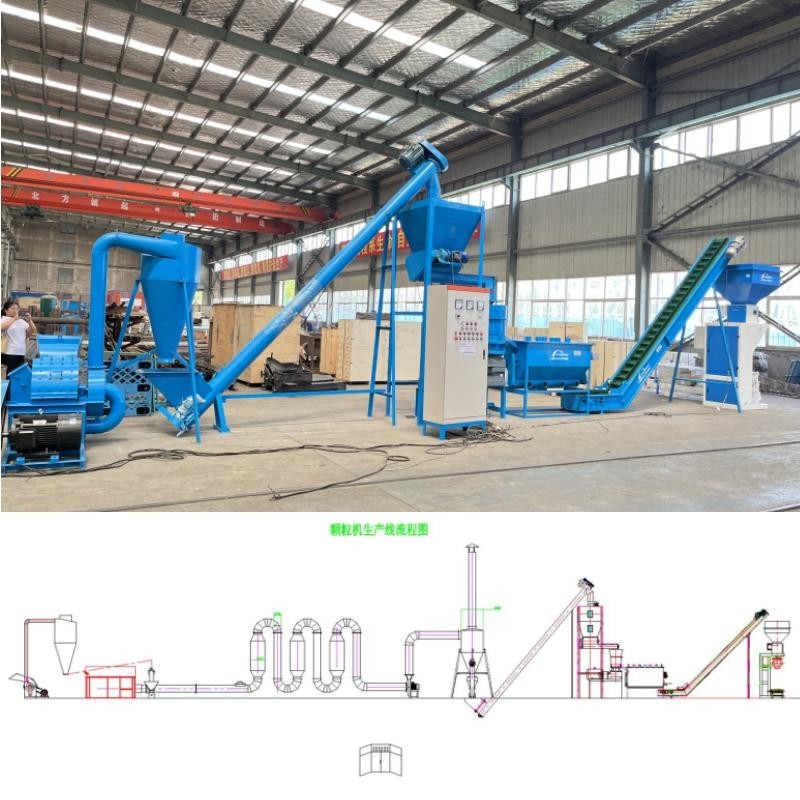

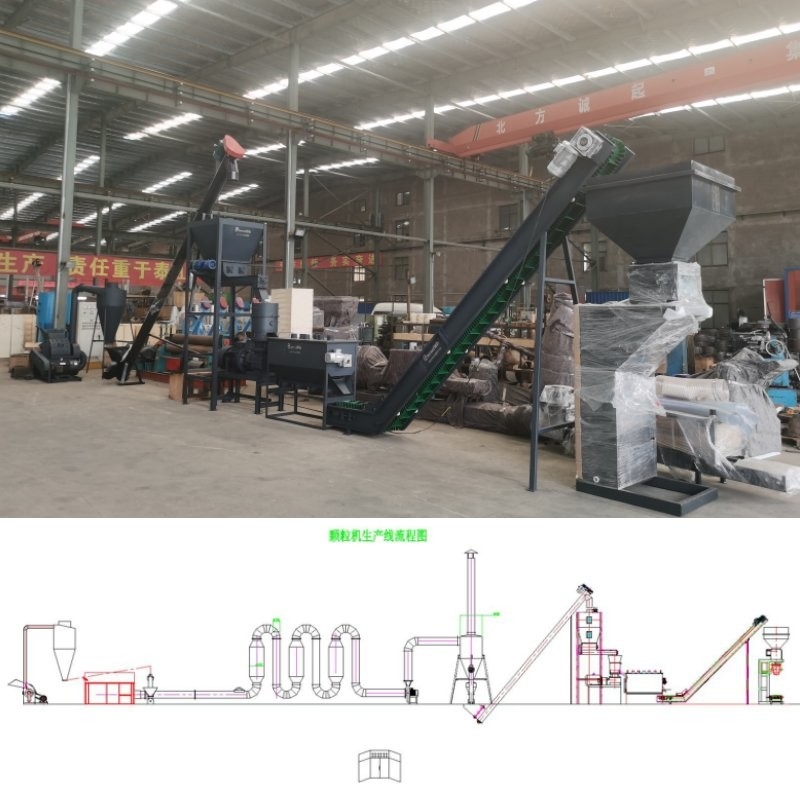

Specifications:

No. Item Model Qty. Power(kw) Note
Crushing system 1 Cutter Grinder TFS500-40 1 22 Two inlets, for wood log and branches,diameter≤200mm
Drying system 2 Conveyor1 BC06 1 3
  3 Airflow dryer HG-2000 1 7.5



Granulation system



4 Screw Feeder LS220 1 4+0.55 with broken arch
  5 Stock Bin / 1 /
  6 Feeder LS160 1 0.75 with broken arch
  7 Pellet Machine 420R 1 37 Moving roller type
Cooling system 8 Trommel Screen LQSF70 1 5.15

Conveyor

Packaging

9 Conveyor2 QB380 1 2.2
  10 Packing Machine BZJ50 1 1.26 PLC control
Electronic control system 11 Electric control cabinet / 1 83.41





Payment term:



30% for down payment, and balance paid before ex factory.



Application:​​

​​

300kg-800kg Wood Pellet Production Line Bagasse Sorghum Straw Pellet Production Line 0



FAQ:



Here Are Some Questions You Might Care About:
▶What Raw Materials Can Be Recycled And Processed Into Biomass Pellets By This Wood Pellet Production Line?
The following are some common materials that are used as raw materials by our customers:
•Forestry Waste: such as logs, sawdust, wood chips, branches, leaves, etc.
•Agricultural Waste: such as hay, grass, straw, forage, alfalfa waste, cassava waste, coconut husk, bagasse, rice husk, etc.
•Domestic Waste: such as waste paper, wooden building formwork, etc.
•Palm Industry Waste: palm is an important industry in Indonesia, in which palm kernel shell, palm fiber, palm empty fruit bunches and other palm waste, etc, can be processed into biomass pellets for combustion.
▶Is It a Wise Choice To Invest In a Wood Pellet Production Line in Indonesia?
Yes, Indonesia is the second largest exporter of biomass pellets in Southeast Asia. Indonesia has a large amount of biomass raw materials and has policy support. It will be a good choice to invest in biomass pellet plants in Indonesia.

▶Are You A Manufacturer?
Yes, Zhongdebao Machinery is a professional manufacturer with more than 20 years of experience in this industry.

▶I Know Little For Wood Pellet Production Line, How Can I Choose Most Suitable Machines?
Just tell us what your raw materials is, your capacity (t/h), the size of the final pellet product, the size and height of your
workshop. We will design the solution that works best for you.

▶Can I Use This Wood Pellet Production Line To Produce Pellet With Different Size And Diameter?
Yes, the diameter of the pellets is controlled by the die holes on the Ring Die of the Wood Pellet Machine. We provide and customize a variety of different specifications of ring dies to meet your needs. The length of the pellets is adjusted by the cutter adjustment handle on the Wood Pellet Machine, and no additional accessories are required.



300kg-800kg Wood Pellet Production Line Bagasse Sorghum Straw Pellet Production Line 1

300kg-800kg Wood Pellet Production Line Bagasse Sorghum Straw Pellet Production Line 2

300kg-800kg Wood Pellet Production Line Bagasse Sorghum Straw Pellet Production Line 3
