500kg/H And 300kg/H Biomass/Wood Pellet Production Line CE Certification
(HS:8479300000)
Production Introduction:

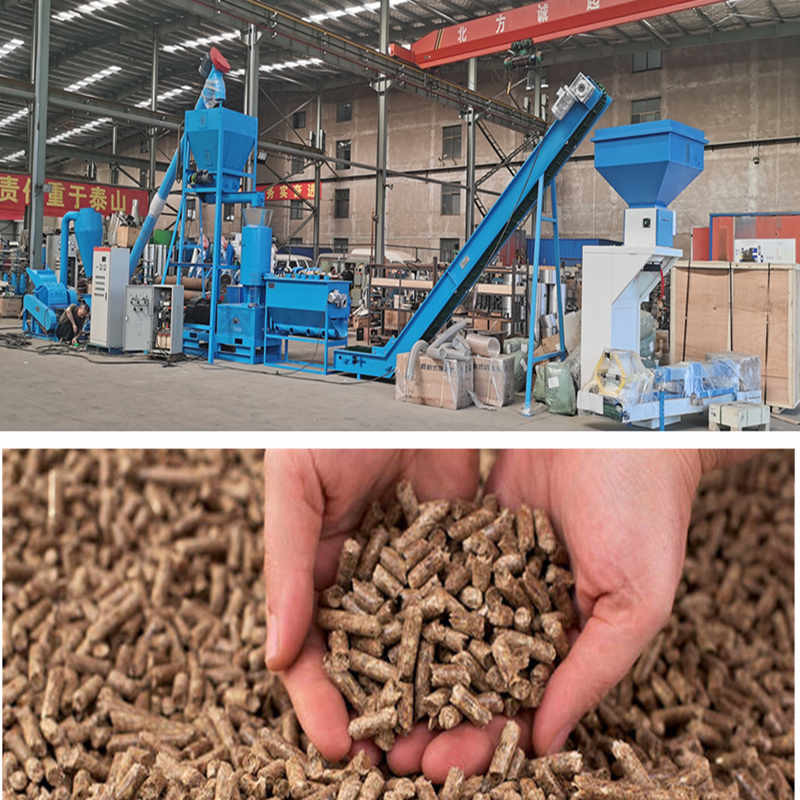

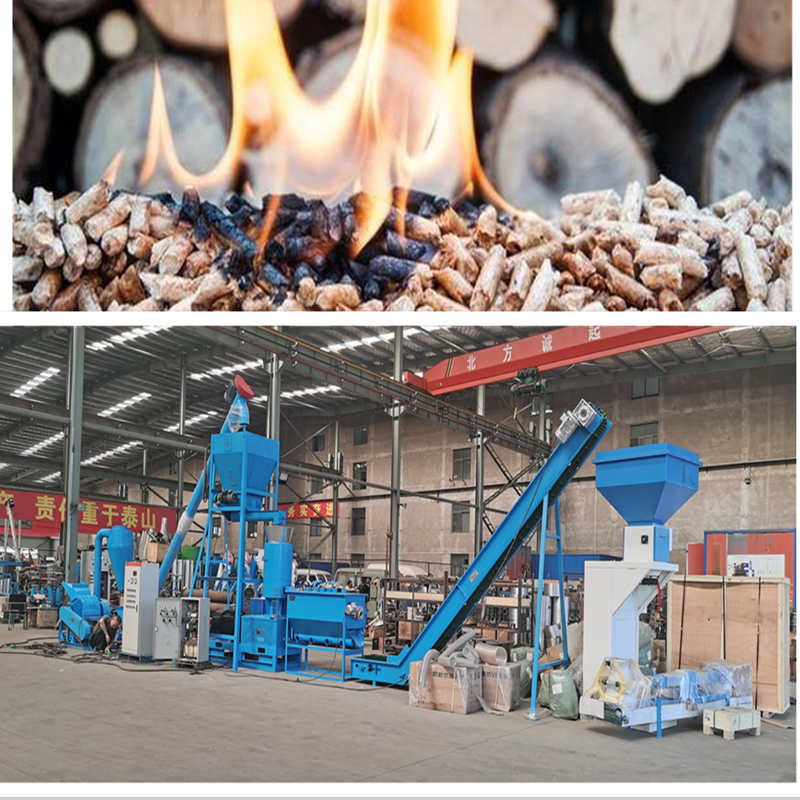

Zhongdebao's wood pellet production line includes: wood chipper system ~ sawdust crushing system ~ drying system ~ granulation system ~ pellets cooling system ~ automatic packaging system. We can design suitable solutions for custamers according to different capacity requirements and different raw materials,from 0.5t/h to 20t/h and larger capacity we can complete.
Raw materials such as waste wood,sawdust,rice husk,straw,wasste tray,agricultural waste can be pressed into high-density pellets, biomass pellets can be hurned to obtain heat energy, widely used in life heating, power generation and other fields.
| No | Item | Function |
| 101 | Wood chipper | Prepare raw materials for pellet machine. |
| 102 | Wood crushing machine | |
| 103 | Belt conveyors(1) | Dry raw materials and transfer raw materials to the silo. |
| 104 | Dryer | |
| 105 | Screw conveyor | |
| 106 | Raw material silo | Can process 6mm-12mm diameter of wood pellets, generally recommended 6mm or 8mm, the market is broad, the effect is better. |
| 107 | Feeder | |
| 108 | Pellet machine | |
| 109 | pellets clooer | The formed particles are cooled and packaged. |
| 110 | Belt conveyors(2) | |
| 111 | Packing Machine | |
| 112 | Electrical control cabinet |
Process flow:
Raw material chipping → Crushing → Drying → Granulation → Pellets cooling → Bagging and packaging.
1. Slice the logs and prepare them for processing into sawdust.
2. Crush wood chips into sawdust.
3. If the moisture of the raw material exceeds 20%, use the dryer to dry the raw material to 18-20% moisture.
4. Send the dry sawdust through the conveyor into the granulator to start granulation.
5. The temperature of the newly pressed particles is high, and it needs to be cooled by the cooling screen.
6. The cooled particles are packaged.
Product Features:
1. We have a wealth of practical experience with more than 300 wood pellet production line projects around the world.
2. The particle molding rate is as high as 98%, the particle density is high, and the combustion effect is good.
3. High calorific value of production particles, low ash content, in line with ENPLUS A1 certification.
4. The project covers an area of 45%-50% less than the traditional drying granulation production line.
5. Equipped with intelligent electrical control system, easy operation.
Payment:
Pay 30% deposit and we start production.
transportation:
We pack by wooden case or whole container shipment. Shipping to your country by sea, rail, etc.
